400S

Max working height: 14.2m
Platform capacity: 272kg
Stowed height: 2.38m
Weight: 7,135kg

Description

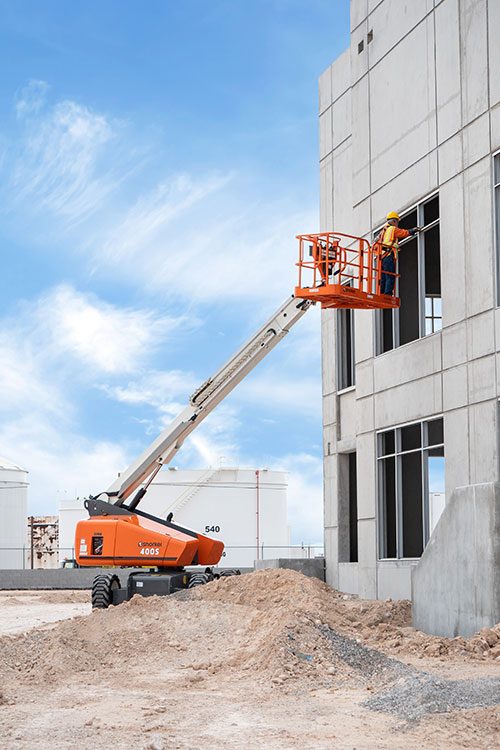

The Snorkel 400S is a mid-sized telescopic boom lift equipped for tough jobsites. Powered by 4-wheel drive and an oscillating axle as standard, the boom lift delivers excellent rough terrain performance. All-proportional controls make the 400S highly versatile on the job. Its durable design is built to last in construction and industrial applications.

Standard Features

Snorkel Guard™ secondary guarding system
1.67m 135 jib (460SJ)
Oscillating axle
Hydraulic platform rotation
4-wheel drive
All proportional controls
Swing-out engine tray
Hydraulic oil cooler
Hour meter & on-board diagnostics display
Power line to platform
Tilt alarm & cut-out
DC emergency operation
Tri-entry platform
Flashing amber light
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	14.2m
Max Platform Height	12.2m
Max Working Outreach	10.6m
Platform Size	2.44m x 0.91m
Overall Width	2.31m
Transport Width	2.08m
Overall Length	7.57m
Transport Length	7.57m
Stowed Height	2.38m
Transport Height	2.38m
Ground Clearance	320mm
Platform Capacity (Unrestricted)	272kg
Platform Capacity (Restricted)	454kg
Max Drive Height	12.2m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	6.8km/h
Max Drive Speed (Elevated)	1.0km/h
Jib Length	n/a
Jib Arc	n/a
Platform Rotation	150°
Turret Rotation	360°
Tailswing	0.9m
Raise/Lower Time	64/64 sec
Gradeability	50%
Inside Turning Radius	3.0m
Outside Turning Radius	5.06m
Tyres	355/55 D625 foam filled lug
Controls	Proportional drive, raise, slew, extend, jib & platform rotate
Drive System	4 wheel drive
Power Source	Kubota 18.6kW (24.9hp) diesel – Stage V
Auxillary Power Unit	12V DC
Weight	7,135kg

Options

Special paint colours
Airline to platform
Air-filled flotation tyres
Pipe rack
Non-marking tyres
Dual fuel
AC generator 110V/240V 2kW
Aircraft package
Deluxe aircraft package
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Tow kit
Glazier package
7.5kW generator package
Environmental hydraulic oil
Tool tray
Snorkel OnSite™ telematics

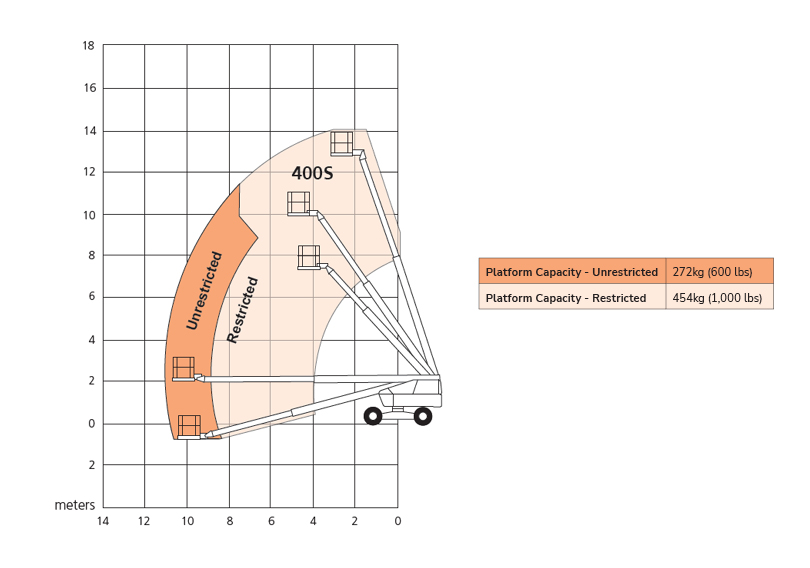

Working Envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.
