DINO 185XTC II

Max working height: 18.5 m
Lifting Capacity: 215 kg
Max outreach: 15.2 m
Weight: 2860 kg

Description

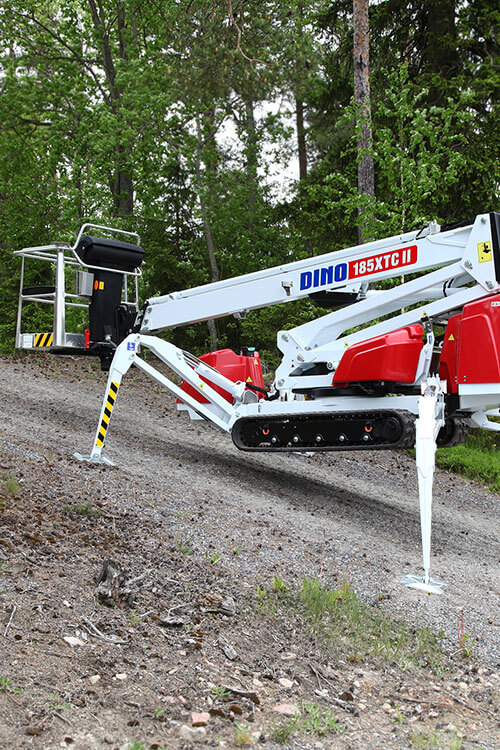

The DINO185XTC II tracked spider lift is compact and narrow. Its long tracks make it extremely stable to drive with low ground pressure. With a powerful diesel engine, this machine has excellent gradeability up to 43% and automatic leveling up to 16°. The hydraulic basket offers 180° continuous rotation.

Standard Features

Compact and narrow; width 1.4 m / 1.18 m
Extremely stable to drive – long tracks; low ground pressure – low center of gravity
Strong diesel engine, excellent gradeability 43%
Levelling to the max. inclination 16°
Automatic levelling
Hydraulic basket rotation 180°
Easy-entry basket
Continuous rotation of the boom
AC sockets in the basket

Additional information

Max Working Height	18.50 m
Max Platform Height	16.50 m
Max Working Outreach	11.20 m
Support Width	3.54 / 3.95 m
Lifting Capacity	215 kg
Basket Size	0.7 x 1.3 m
Boom Rotation	Continuous
Basket Rotation	180°
Boom Control	proport.
Transport Length	5.93 m
Transport Width	1.40 / 1.18 m
Transport Height	1.98 m
Weight	2860 kg
AC socket in the basket x 2	Std
Diesel engine Kubota 17.3 kW	Std
Length of Tracks	1.93 m
Gradeability	43%
Max. Levelling Inclination	16°
Drive Speed	1.4 / 2.4 km/h
Automatic Levelling	Std
Radio Control	Option
Electric motor 110/230VAC	Option

Options

User-friendly radio control
Electric motor 110/230V
Non-marking tracks
DINO SafeGuard secondary guarding
Special colour
Converter 110V
Narrow basket 0.7 x 0.8 m
LED working lights

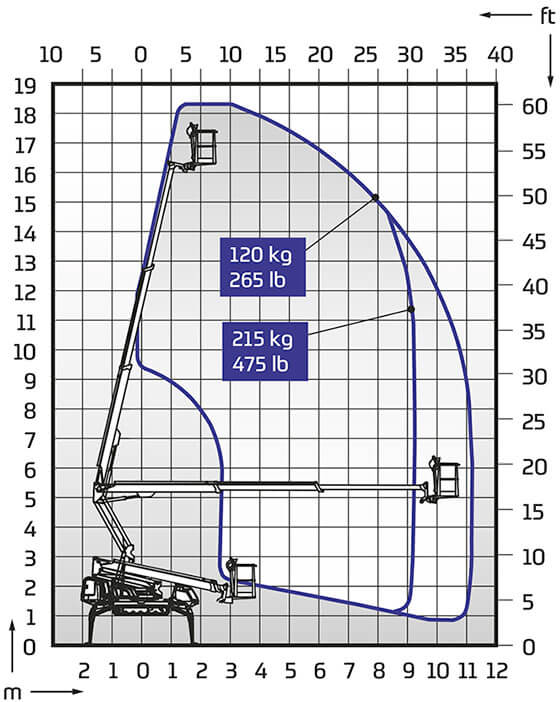

Outreach Diagram

DINO 185XTC II Outreach Diagram

Video

Warranty

All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.
