S3010E

Max working height: 5.0m
Platform capacity: 227kg
Stowed height: 1.8m
Weight: 495kg

Description

The Snorkel S3010E is a self-propelled electric scissor lift designed small yet mighty. Its compact dimensions and zero inside turning radius are ideal for working in tight spaces, and ‘point and go’ joystick controls make it super-easy to operate. The S3010E can be driven at full height and carried in passenger elevators for complete versatility.

Standard Features

Highly manoeuvrable skid steer
Zero inside turning radius
Saloon-door style entry gates
1 person + equipment capacity indoor
Non-marking tyres
Proportional point & go joystick controls
Integrated battery charger
Battery condition indicator
Crane points & through-the-chassis fork pockets
Selectable motion alarm
Tilt & descent alarm
Hour meter
Horn
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	5.0m
Max Platform Height	3.0m
Platform Size	1.09m x 0.51m
Overall Width	0.77m
Overall Length	1.26m
Stowed Height	1.8m
Ground Clearance	58mm
Platform Capacity (SWL)	227kg
Max Drive Height	3.0m
Max Wind Speed	0m/s
Max Drive Speed (Stowed)	3.5 km/h
Max Drive Speed (Elevated)	0.64 km/h
Raise/Lower Time	18/25 sec
Gradeability	25%
Max Operating Slope	2°
Inside Turning Radius	0m
Outside Turning Radius	1.4m
Tyres	230mm dia. non-marking rubber
Parking Brake	2 wheel automatic
Controls	2-axis proportional controls
Drive System	DC direct drive
Power Source	2 x 12V 105Ah
Battery Charger	100-240V 50/60Hz Auto, 30 amp
Weight	495kg

Options

Special paint colours
Environmental hydraulic oil
Snorkel OnSite™ telematics

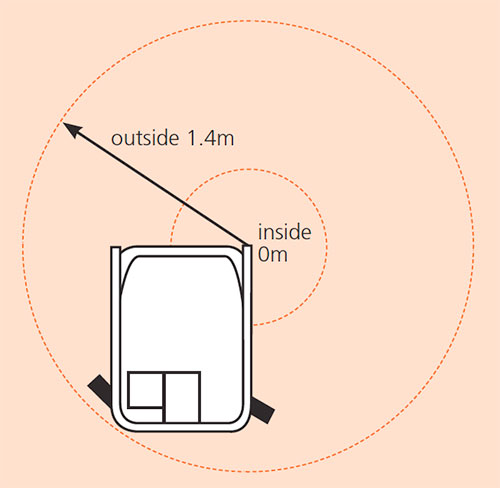

Turning Radius

S3010E Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.
